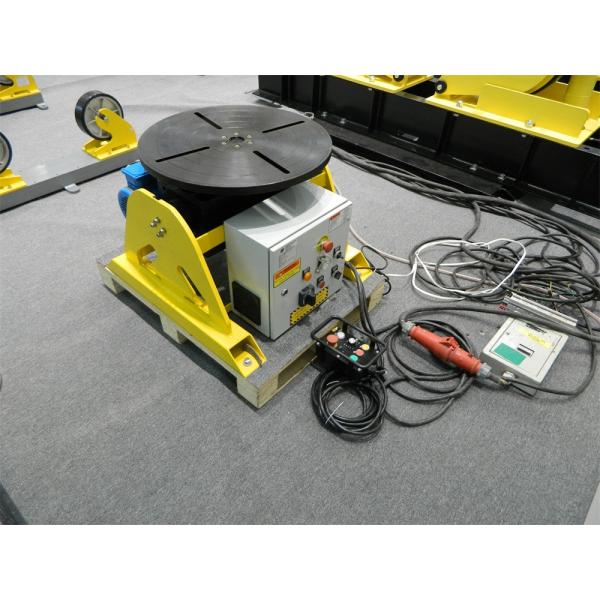

Pipe Joint Welding Pipe Welding Positioners With 3 jaws Welding Chucks 300KG

Brand Name : SKSS
Model Number : HBJ - 03
Certification : ISO/CE/CO
Place of Origin : China
MOQ : 1 set
Price : Negotiation
Payment Terms : TT / 30 % payment in advance
Supply Ability : 5 sets per month
Delivery Time : 7 Days
Packaging Details : Packed in wooden case / Container
Max Capacity : 300 kg
Application : Welding
Tilting angle : 0 - 90 °
Table diameter : 600 mm
Rotation speed : 0.1 - 1 rpm
Contact Now

Pipe Joint Welding Pipe Welding Positioners With 3 jaws Welding Chucks 300KG More products pics.pdf


1. Pipe Diameter : 50 - 300 mm

2. Voltage : 110V - 600V 50 / 60Hz all available

3. Package : Wooden Case

4. Delivery Time : 7 Days


Description


1. The worktable could be rotating 360°and tilting 90°to allow work piece to be welded at the best position.
2. Variable Frequency control (VFD) speed by rotating and motor-driven speed regulation by tilting from which customers can choose in line with operational requirements.

3. Can help for all types of manual welding and auto-welding.

4. Controlled by step-less frequency conversion.

5. If work piece is longer or irregular shape, larger specification is more suitable due to eccentricity and gravity center.


Specifications


Model

HBJ-03

HBJ-06

HBJ-12

HBJ-30

HBJ-50

Max Capacity

300 kg

600 kg

1.2 T

3 T

5 T

Table Diameter (mm)

600

1000

1200

1400

1500

Rotation Power (kw)

0.37

0.75

1.1

1.5

3

Rotation Speed (rpm)

0.1-1

0.09-0.9

0.05-0.5

Tilting Power (kw)

/

0.75

1.5

2.2

3

Tilting Angle (°)

0-90

0-90

0-90

0-90

0-90

Tilting Speed (kw)

Manual

1.1

0.67

0.23

0.14

Option:

□ Foot Pedal □ Wireless Control □ Tilting Angle 120°

Competitive Advantage


1. It’s easy to control with electric cabinet and hand control panel

2. Sand blasting treatment to main welding parts before painting
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands


Clamps for reference


1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

2. Special clamps are available,but we have to design according to your work piece detail drawings.



Certificate and Company Work Shop


1. All our equipments have passed CE test and get the CE certificates. So it's ok to export the European.

2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.


Door to door delivery is available.


SO JUST SEND YOUR INQUIRY NOW.
